In the high-fidelity world of vacuum tube amplifiers, enthusiasts often seek out specific tubes for their perceived sonic characteristics and superior construction. One key differentiator in many legendary vintage tubes is the implementation of a frame grid instead of the standard, traditionally wound grid.

This article explores the technical differences between these two grid types, using iconic examples like the Telefunken ECC803S and the Tesla E83CC, while also noting that some entire tube families, like the ECC88/6DJ8, were built exclusively with frame grid technology.

The Traditional Wire-Wound Grid: The Humble Standard

The control grid in a triode vacuum tube sits between the heated cathode (the electron source) and the anode (the plate, which collects the electrons). Its purpose is to modulate the flow of electrons by applying a variable negative voltage.

For decades, the traditional way to construct a control grid was to wind a very fine wire (often molybdenum or tungsten) around two relatively thick wire supports. This process, while standard and relatively cost-effective, inherently introduces limitations:

• Tension Consistency: Achieving perfectly uniform tension on the fine grid wire across the entire winding is challenging.
• Sagging and Deformation: During operation, the grid heats up, causing the supporting rods and the grid wire to expand. This can lead to the grid wire sagging or deforming, especially on longer grids.
• Microphony: Any lack of perfect mechanical rigidity makes the grid susceptible to vibrating in sympathy with physical sound waves, known as microphony. This introduces unwanted noise into the audio signal.
• Capacitance: The physical structure of the wire wound around supporting rods creates inter-electrode capacitance, which can limit high-frequency performance.

The Frame Grid Solution: Precision and Rigidity

The frame grid was developed as a more advanced manufacturing technique to address the shortcomings of the wire-wound method, specifically to achieve higher reliability and better electrical performance in demanding applications.

Instead of a simple wound coil, the frame grid utilizes a rigid, stamped metal frame (often made from molybdenum, which has an extremely high melting point and excellent stability). Extremely fine grid wires—thinner than a human hair—are then tensioned across this frame, perpendicular to the main supports.

The advantages are immediately apparent from a mechanical perspective:

• Extreme Rigidity: The stamped frame provides vastly superior structural strength. This makes the grid almost entirely immune to sagging or vibration, significantly reducing microphony.
• Precision Control: The wires can be tensioned with much higher accuracy and uniformity. Crucially, this allows for the grid to be placed extremely close to the cathode (often less than 50 microns), with a high degree of precision across the entire surface area.
• Tighter Tolerances: The overall construction allows for much tighter manufacturing tolerances, meaning less variation between individual tubes of the same type.
• Reduced Inter-electrode Capacitance: The fine grid wires combined with the strategic frame design minimize the effective surface area between the grid and the plate, lowering critical capacitance and extending high-frequency response.

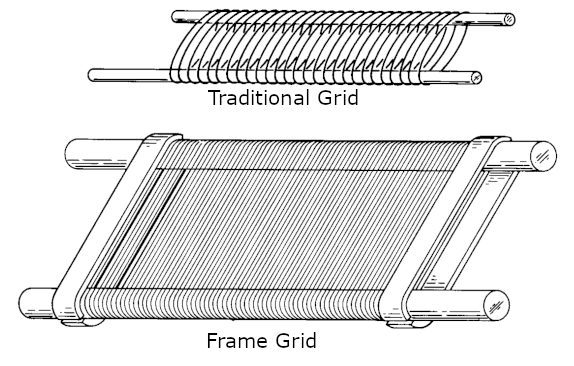

Now, compare the traditional grid with the illustrative detail of a frame grid construction.

(Note: This diagram detail illustrates the frame grid structure, showing very fine parallel wires stretched across a rigid, stamped metal frame, clearly contrasting the method with the thicker wires and heavy supports of the Traditional Wound Grid shown in the previous image.)

Iconic Examples: Telefunken and Tesla

The classic ECC83/12AX7 dual-triode family is where this architectural difference became legendary. While most standard ECC83s (including early Telefunken versions) used traditional grids, two premium variants stand out.

The Telefunken ECC803S

The Telefunken ECC803S is perhaps the most famous frame grid small-signal tube. Introduced in the 1960s, it was designed for professional communication and industrial applications where low noise, low microphony, and exceptional reliability were paramount.

Externally, the ECC803S is often identifiable by the distinct appearance of its frame grid structure (as visible in the illustrative detail of Image 2) versus the standard ECC83.

Audiophiles seek out the ECC803S for its precise, detailed, and non-fatiguing sound, characteristics often attributed directly to the superior mechanical stability and reduced microphony of its frame grid. This tube commanded a premium price when new and remains one of the most expensive and sought-after vintage tubes today.

The Tesla E83CC

While Telefunken pioneered the concept, other manufacturers adopted and refined the technology. The Czech manufacturer Tesla produced several premium industrial tubes, including the ruggedized E83CC.

The Tesla E83CC often, though not always (production variations exist!), utilized frame grid construction. This ruggedized, long-life industrial variant of the ECC83 was built to survive harsh operating environments. Its construction was robust, featuring thicker glass and stronger internal supports. When equipped with a frame grid, it offered a performance boost and reduced microphony similar to the Telefunken ECC803S, but with its own unique sonic character, sometimes described as more robust or “earthy.”

The Rule of Thumb: ECC88 and Frame Grids

It is important to clarify that while frame grids were premium variants in the ECC83 family, the entire ECC88/6DJ8 dual-triode family was designed and built from the ground up as a native frame grid tube.

The ECC88 was developed later than the ECC83 specifically for high-frequency RF applications (such as TV tuners) where low noise, low capacitance, and high transconductance (Gm) were non-negotiable requirements. The frame grid was the standard construction required to achieve these performance parameters. While variations exist in internal structure (like the “ladder” anode structures), the core grid technology of all ECC88 tubes is frame grid based.

Conclusion

The frame grid represents a significant leap forward in precision manufacturing for vacuum tubes. By replacing a simple wire wind with a rigid, stamped structure supporting microscopic wires, manufacturers achieved lower microphony, higher reliability, and tighter tolerances. Tubes like the Telefunken ECC803S and the Tesla E83CC remain iconic examples of how this mechanical refinement translates into superior electrical performance and, for many enthusiasts, the ultimate achievement in sonic fidelity.
